Product Advantage

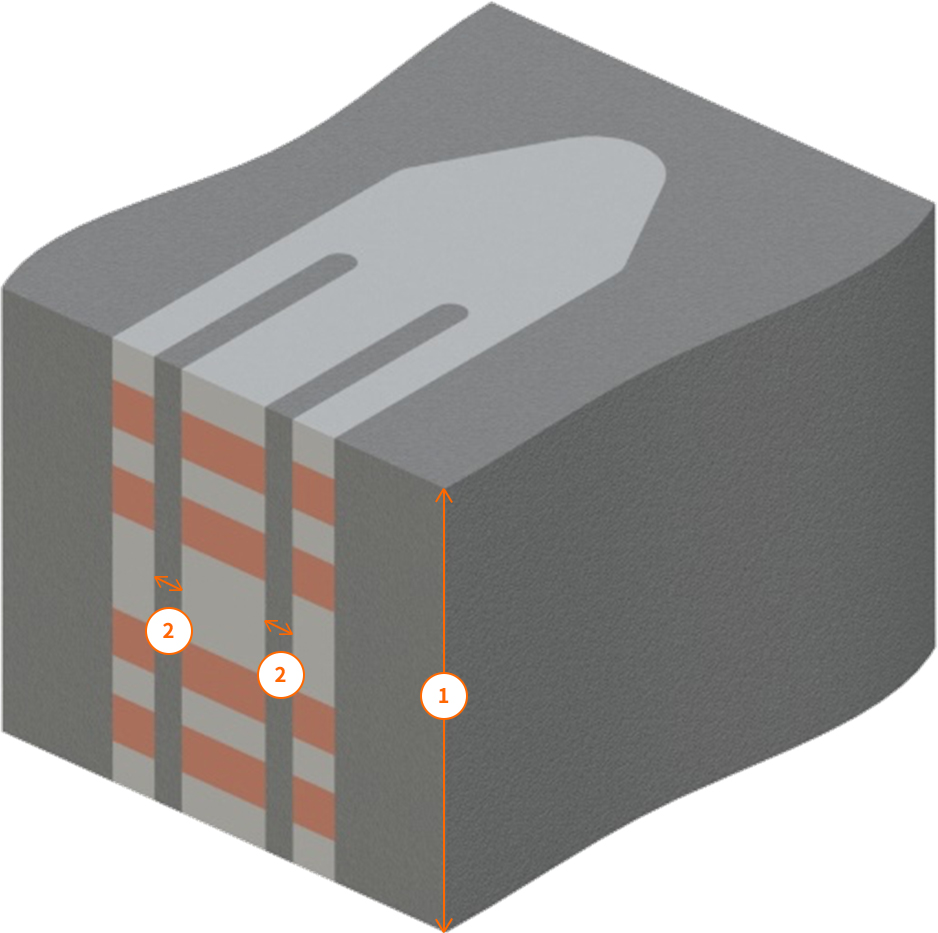

PEC AAO Mold
- Single mold layer thickness +150um
- Gap 4um
AAO: Aluminum Anodic Oxide
Small size pin (<1mm)
High C.C.C Design
Multi beam
High temp < 150°C
PEC AAO Mold

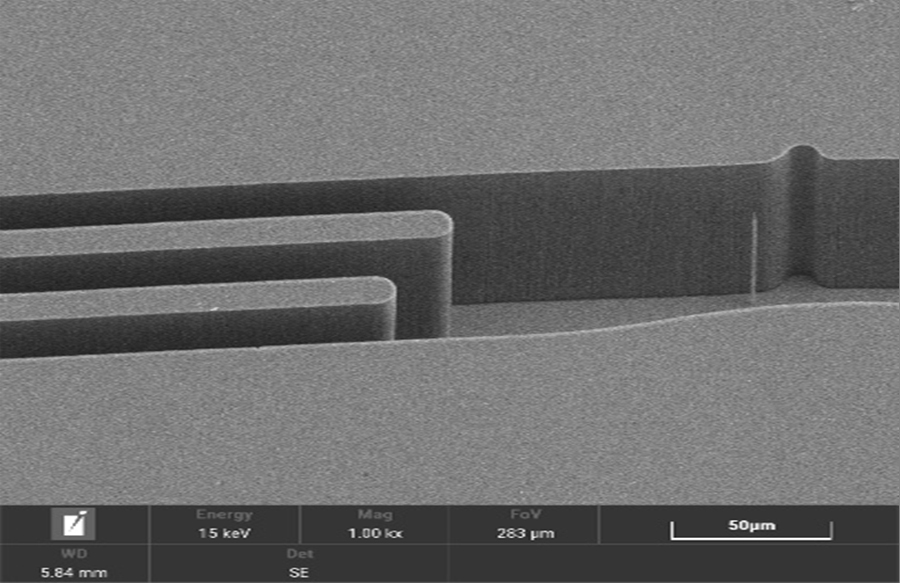

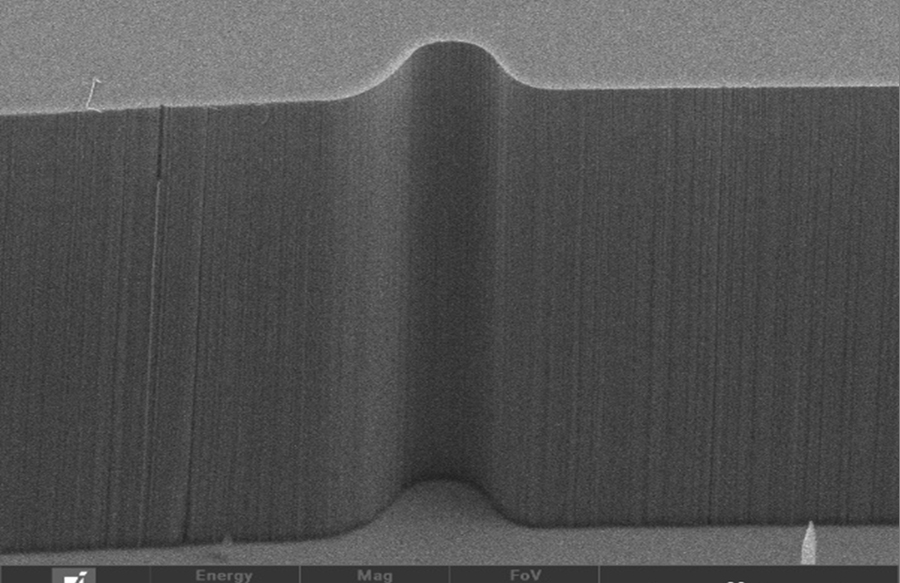

Difference between AAO mold & PR mold
- Vertically wet-etchable material
- Enable precise patterning with 1:40 aspect ratio (compared to conventional PR mold 1:3 ~ 1:4)
- Simplify process via thick single mold layer (~150um)
- Accurate dimension control (±1.5um)

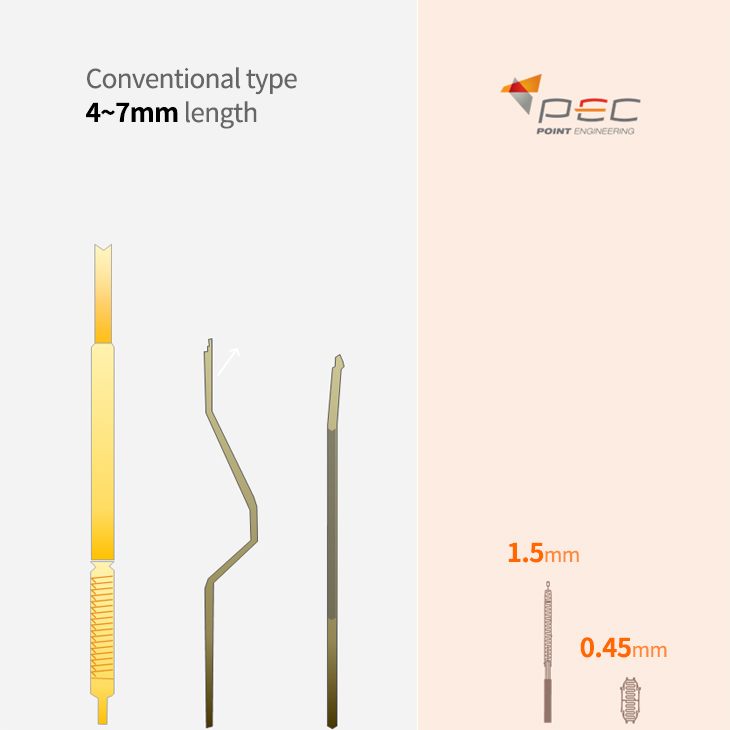

Decrease the length
- Minimize electrical signal distance
- Minimize resistance

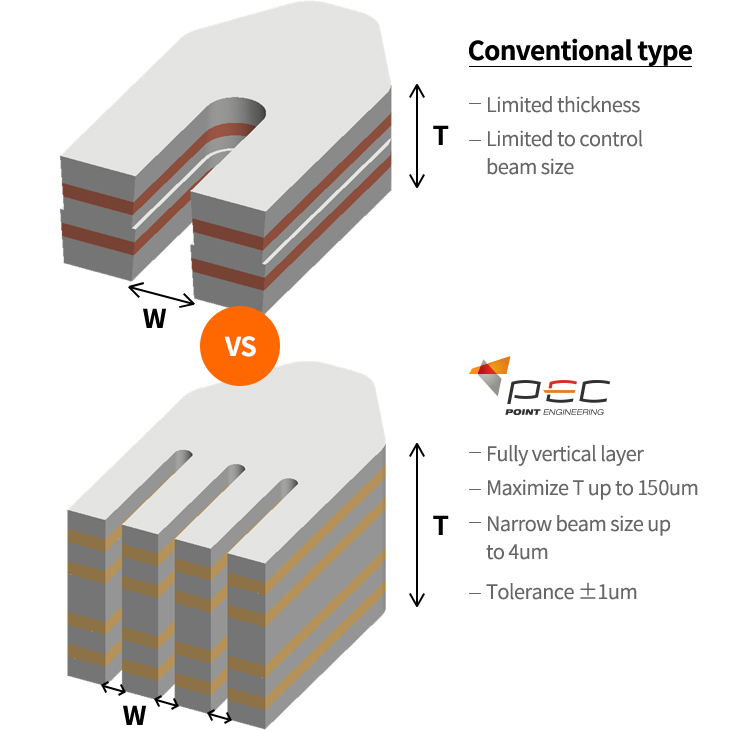

Increase the surface area
- Make vertically thicker
- Enable Multi beam with narrow pitch

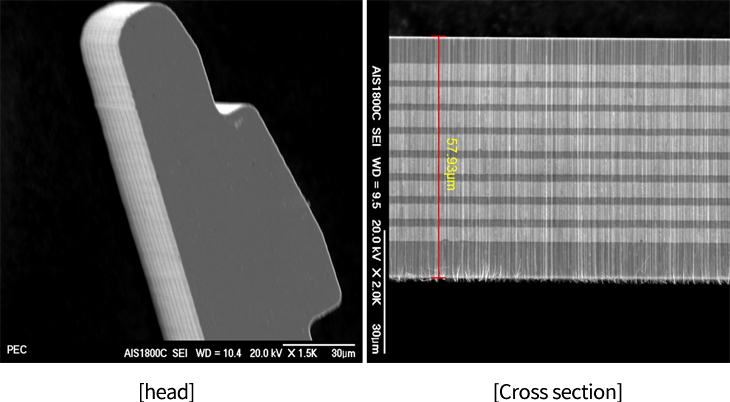

Precise stacking layer
- Differentiated plating technology
- Layer component and ratio can be modified per customer's requirements
- Achieve high plating U% (< 5%) from entire area
