Probe Pin Foundry

Foundry Guideline

Vertically Integrated
Manufacturing System

In addition with automated AAO and MEMS mass production system, Point Engineering provides high quality MEMS Pin service with short term delivery lead time. Professional engineers provide optional feedback based on simulation and analysis.

/
Plating Materials

Pd-Co / Ni-Co / Au / Cu / Rh

Plating Min. Thickness

1um

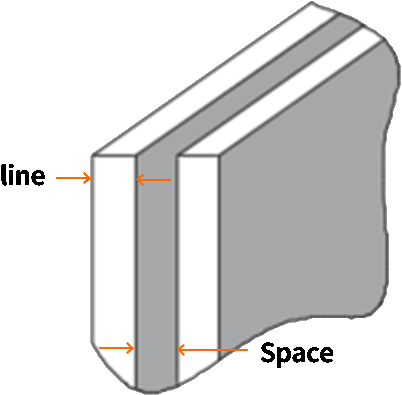

Pattern Line & Space

Min. 4um

/

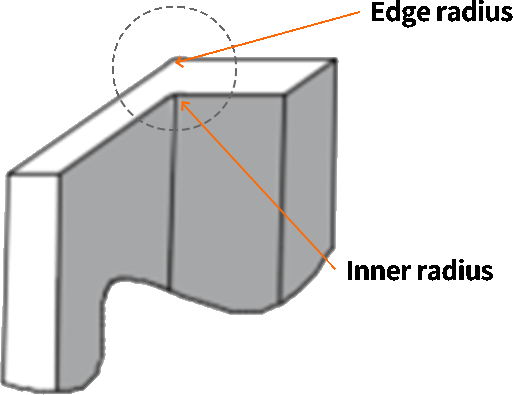

Radius

R 3㎛

/

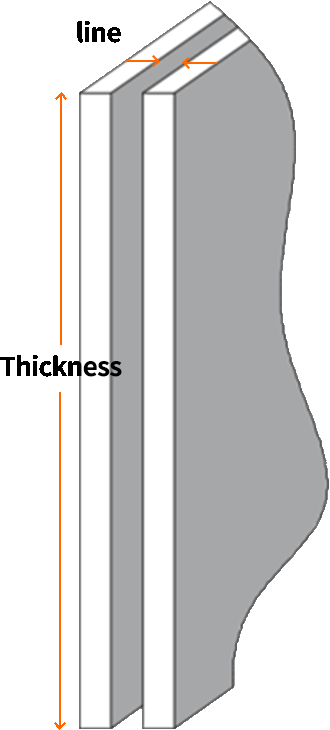

Aspect-ratio
  • 1:30
  • Line: 4㎛
  • Thickness: 150㎛
/

Pin Shape

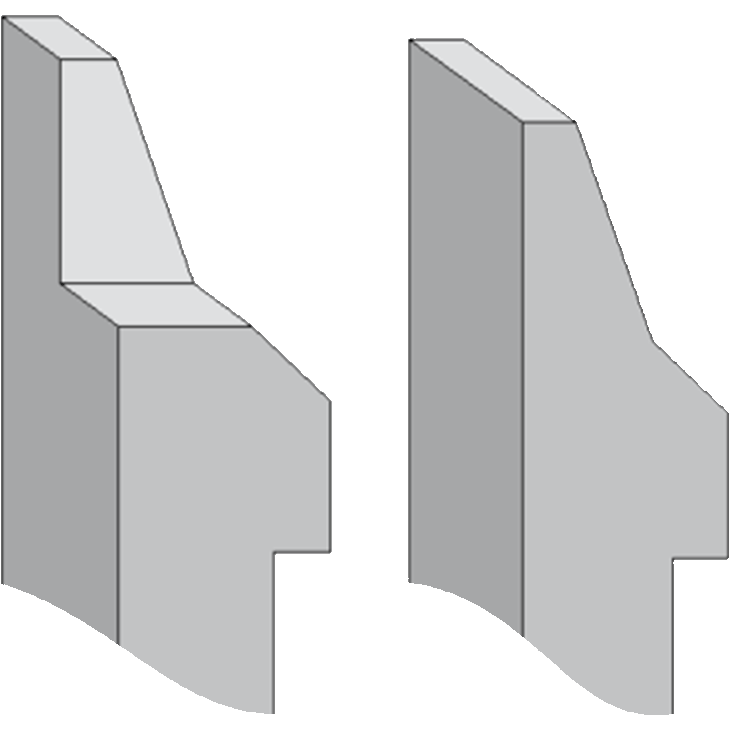

Head

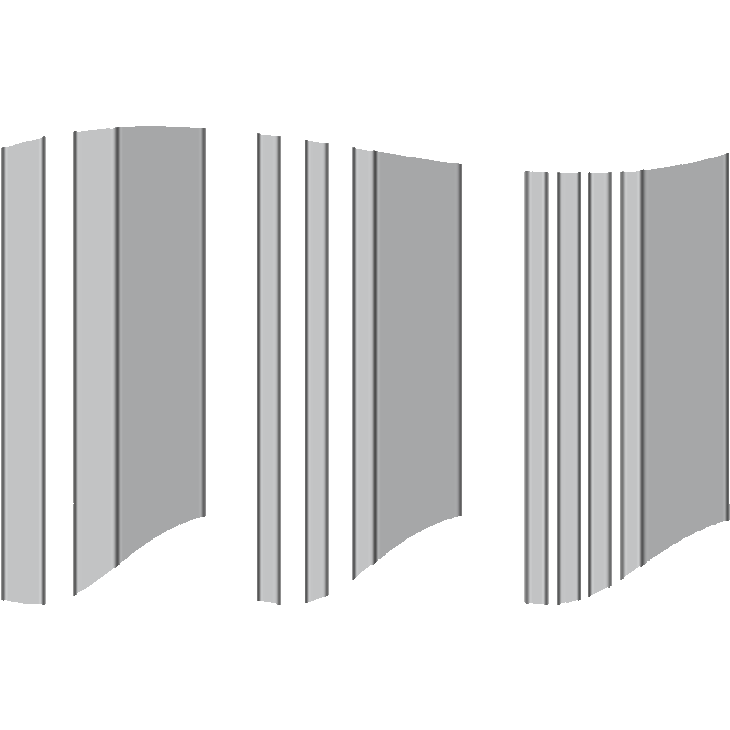

Beam

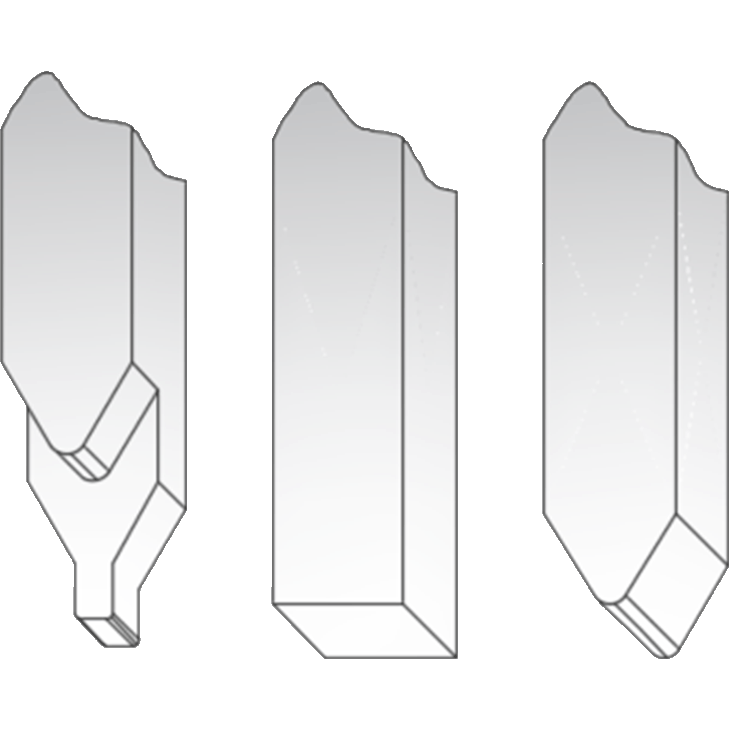

Tip
