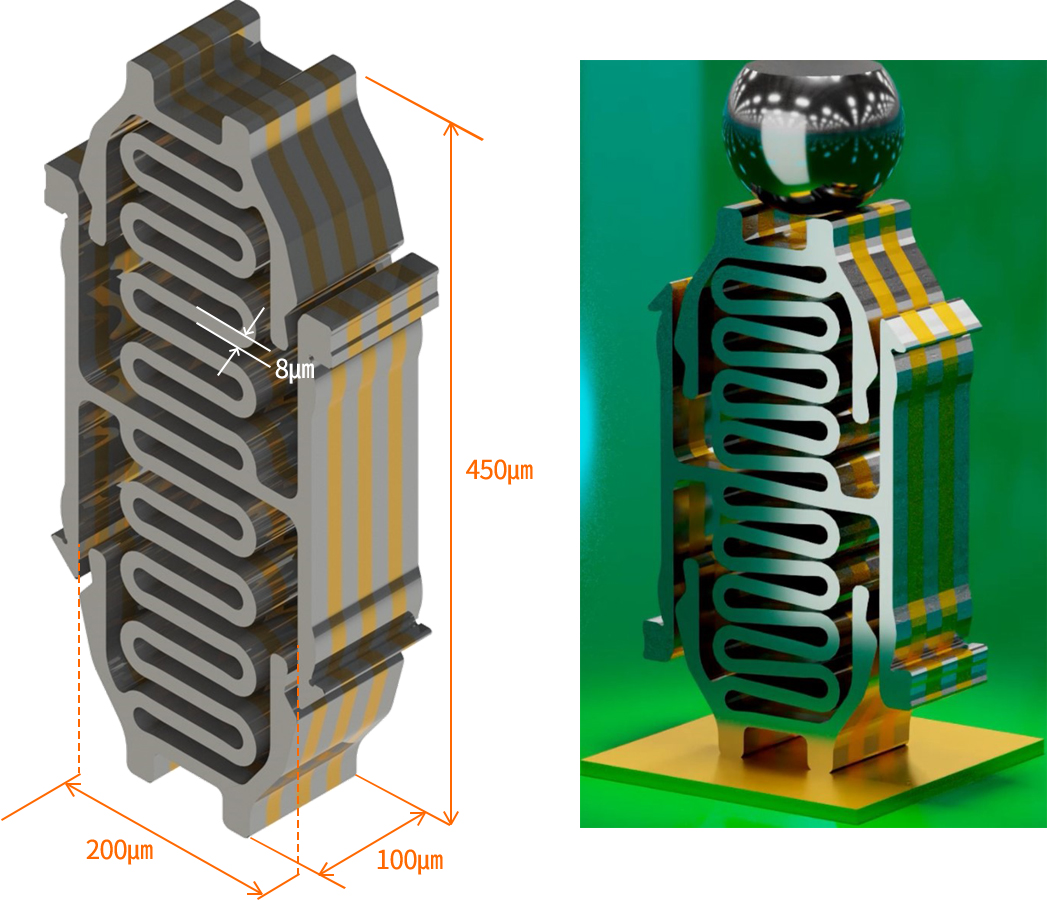

Size
(550) 450 X 200 X 100(um)
Our Address
89, Asanvalley-ro, Dunpo-myeon, Asan-si, Chungcheongnam-do, Republic of Korea
Urgent issue? call us at
+82–4–546-5131
Probe Pin Foundry
- Home
- Probe Pin Foundry

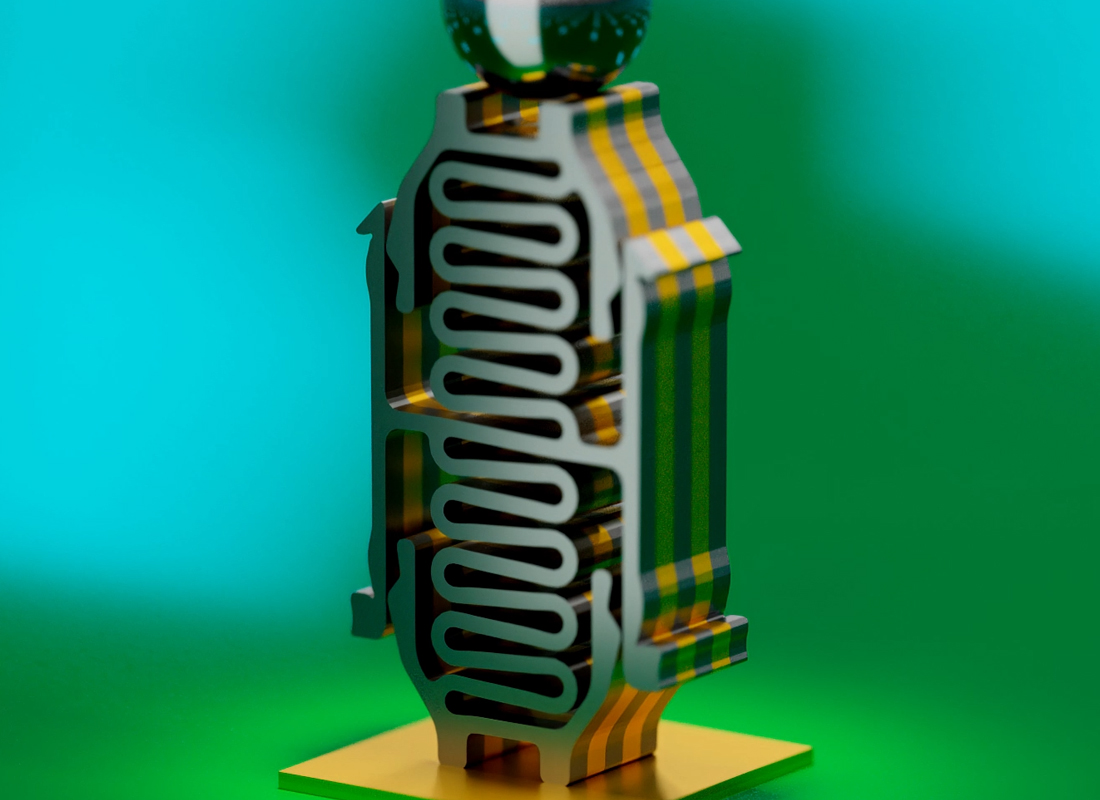

PEC Spring Pin (Socket Type)
- - Suitable for narrow pitch application (< 270um)
- - Suitable for high frequency application
- - No solder ball contact damage issue
- - Longer life time due to high restoration
- - Easy repair & replacement of individual pins
Product Feature
Frequency
-1dB @100GHz
Ball Pitch
≤ 0.27㎜
Contact Force
5~8gf / pin
Current / Pin
≥ 2.0A
Contact Stroke
0.15㎜
Contact Resistance (Cres)
≤ 120mΩ
Narrow pitch
High C.C.C design
High frequency
High temp < 150°C
Assembled product
